Professional workshop solutions for Mercedes-Benz diagnostics, coding, variant configuration, and ECU programming
Target Vehicles
Mercedes-Benz Passenger Cars & Workshop Systems
Mercedes-Benz
Supported Interfaces
K-Line • CAN-Bus • MOST • DoIP Ethernet
Modern Mercedes-Benz vehicles contain dozens of interconnected ECUs communicating through CAN, LIN, MOST and DoIP networks
Whether performing:
Variant Coding
ECU Programming
SCN Configuration

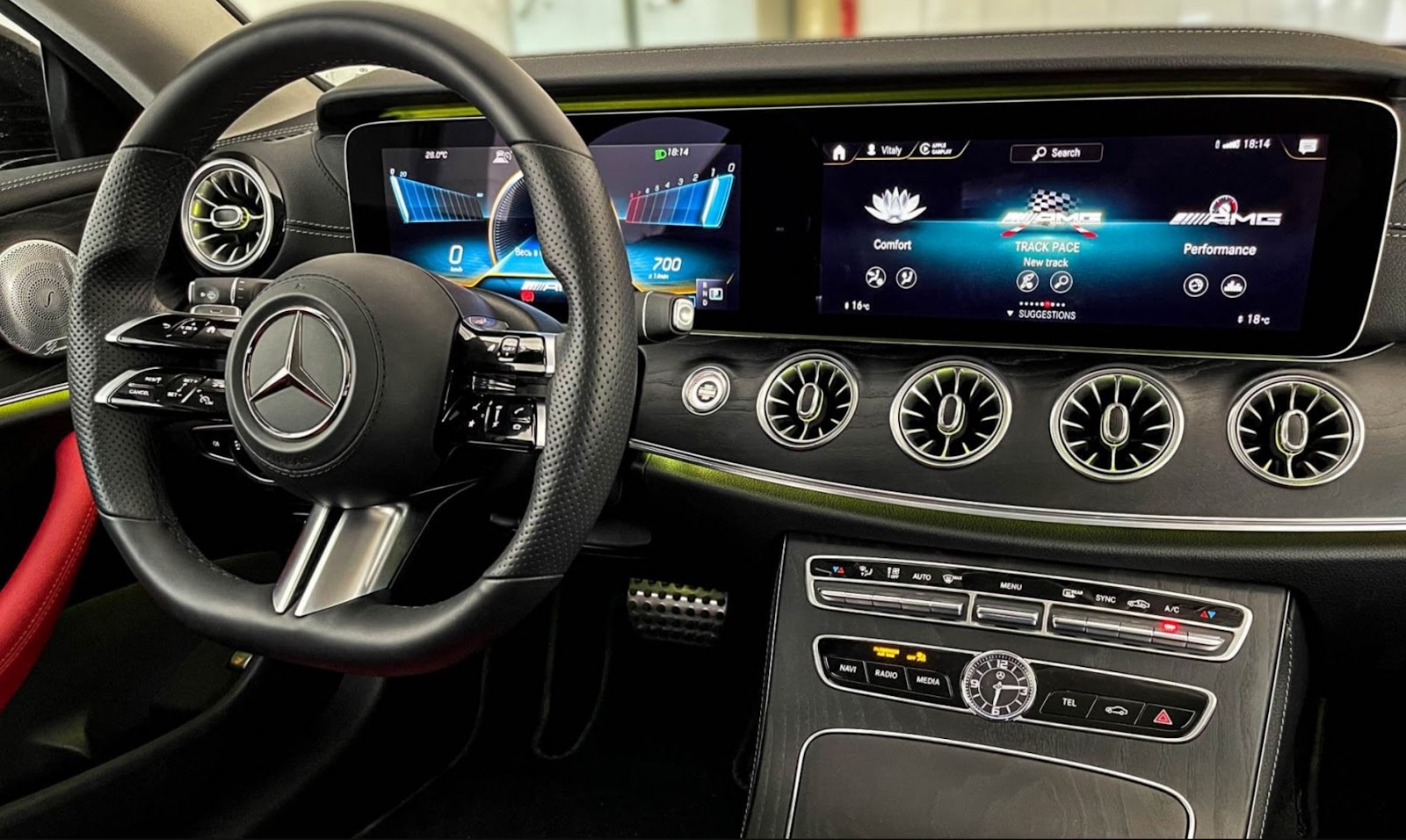

MBUX Adaptation
Firmware Updates
stable communication and proper workshop procedures are essential.
Access coding functions, adaptation channels, diagnostic sessions, and module programming operations
Supports ISO 14229 UDS, ISO 14230 KWP2000, CAN-Bus and DoIP communication architectures
Communication Infrastructure Framework
Before any coding or programming session, the vehicle communication network must be initialized correctly
Network Architecture Table
| Network System | Physical Layer | Speed | Main Function |
|---|---|---|---|
| CAN-C Engine Bus | Twisted Pair | 500 kbps | Engine & Safety Modules |
| CAN-E Chassis Bus | Shielded Differential Pair | 500 kbps | Suspension & Steering |
| DoIP Ethernet | 100Base-TX | 100 Mbps | Flash Programming & MBUX |
| MOST Fiber Ring | Optical Fiber | 25–150 Mbps | Multimedia Systems |
Diagnostic Session Control
Modern coding operations rely on UDS diagnostic sessions
Common Service Commands
0x10 03 = Extended Diagnostic Session
0x10 05 = Engineering Session
0x2E = Write Data By Identifier
0x3E = Tester Present
11 01 = ECU Hardware Reset
Modern ECUs use Security Access procedures to protect critical configuration parameters
Authentication Flow
Request Seed
27 01
Response
67 01 [Seed]
Send Key
27 02 [Key]
Access Granted
67 02
